Impulse® 3000T – Analog TENS Unit with Timer

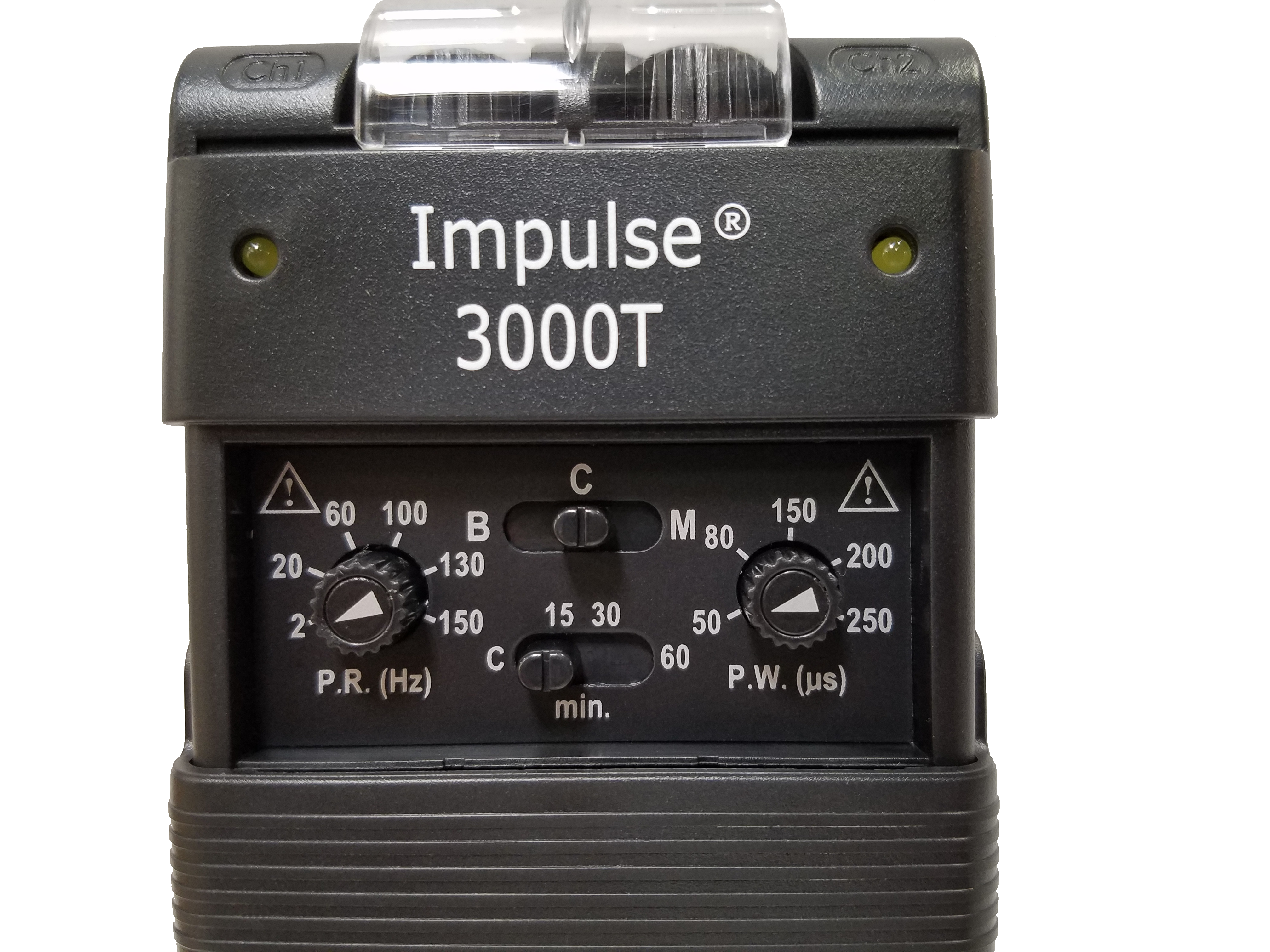

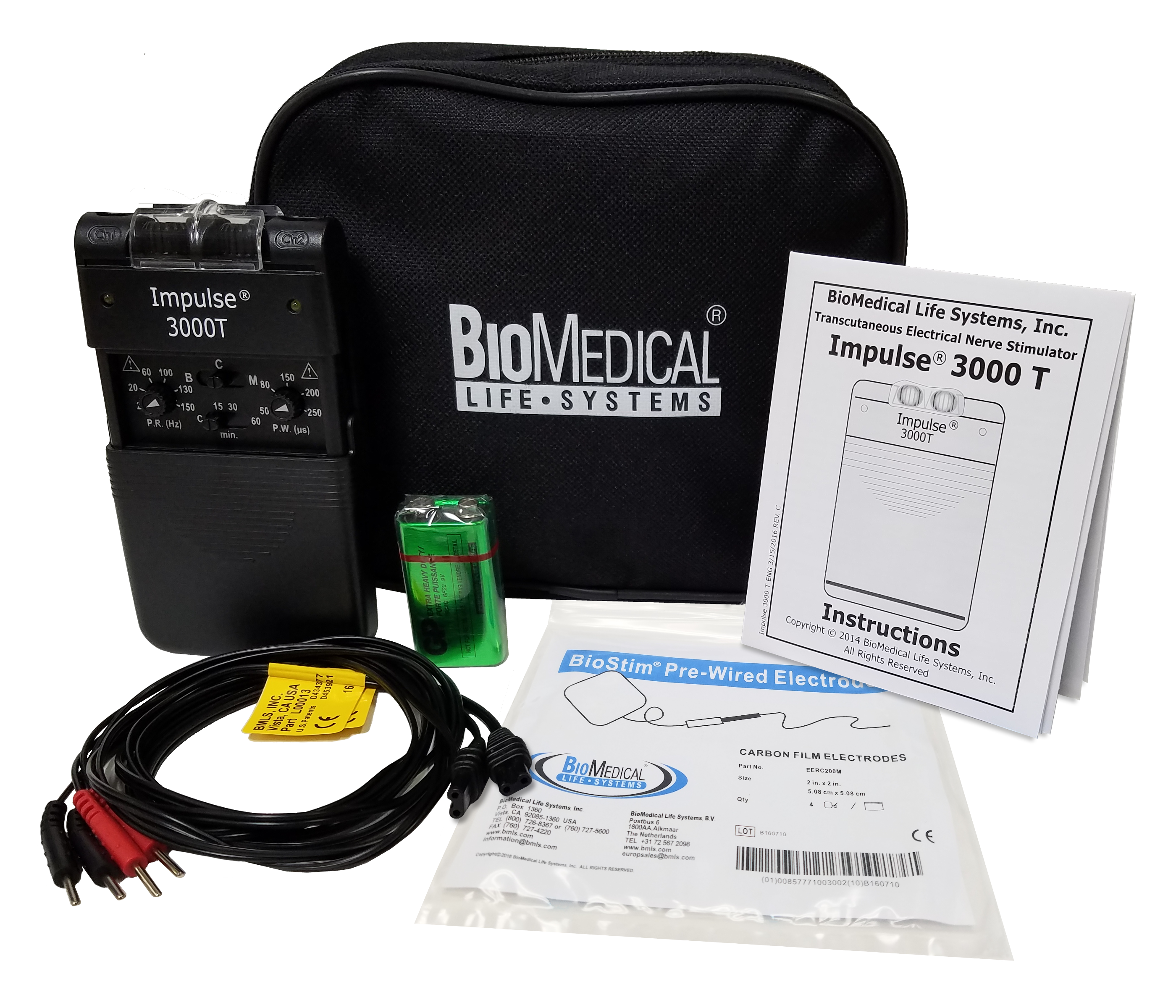

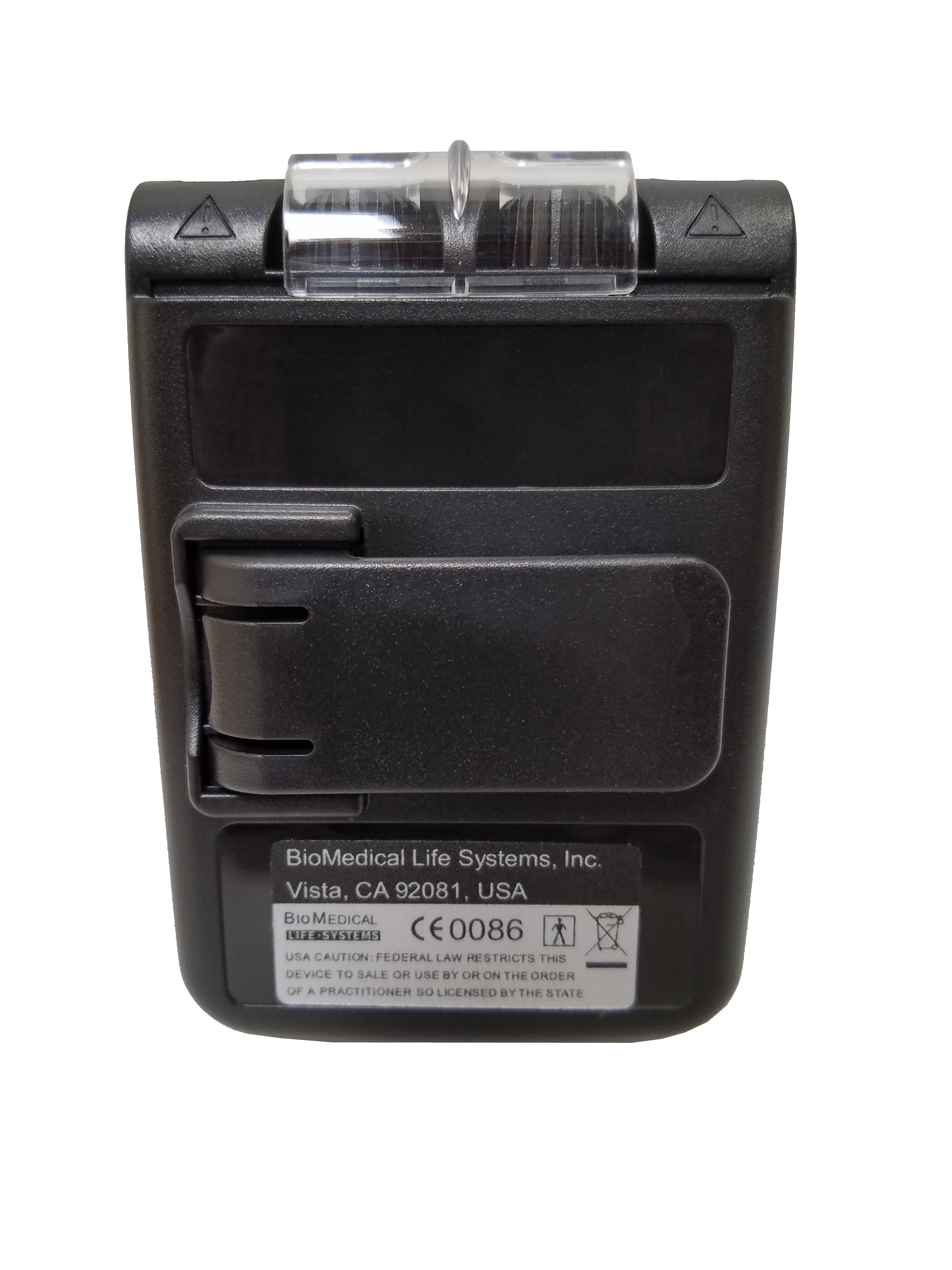

The new ergonomically designed device has the same parameters as its predecessor; adjustable pulse rate and pulse width, and has three modes of operation; constant, width modulation, and burst. This TENS unit with timer is perfect for those seeking timed sessions. The new design of the device incorporates a sliding amplitude control cover for safety, and a permanently attached 9 volt battery cover to prevent loss. The 9 volt battery compartment has been redesigned for simple insertion and removal of the battery. To provide comfort while wearing, the belt clip has been positioned horizontally. The device was designed to be easy to use and economically priced for the patient. Device comes with lead wires, electrodes (4), batteries, instruction booklet and carrying case.

Requires Prescription

Categories: ,
General Specs

General Specs

<table>
<tr>
<td class=”lc”>Dimensions:</td>
<td valign=”top”><span class=”rc”>3.9″ x 2.75″ x 1″ (99mm x 70mm
x 25mm) </span></td>
</tr>
<tr>
<td class=”lc”>Weight:</td>
<td valign=”top”><span class=”rc”>4.6 oz (132 g)</span></td>
</tr>
<tr>
<td class=”lc”>Power Source:</td>
<td valign=”top”><span class=”rc”>9V Battery, E-block, type 6F22 </span></td>
</tr>
<tr>
<td class=”lc”>Channels:</td>
<td valign=”top”>Dual</td>
</tr>
<tr>
<td class=”lc”>Waveform:</td>
<td valign=”top”><span class=”rc”>Asymmetrical, biphasic square-wave</span></td>
</tr>
<tr>
<td class=”lc”>Frequency:</td>
<td valign=”top”><span class=”rc”>2-150 Hz (Hertz or pps) </span></td>
</tr>
<tr>
<td class=”lc”>Impulse Width: </td>
<td valign=”top”><span class=”rc”>50 – 250 microseconds (µs) adjustable </span></td>
</tr>
<tr>
<td class=”lc”>Output:</td>
<td valign=”top”><span class=”rc”>Constant Current</span></td>
</tr>
<tr>
<td class=”lc”>Continuous:</td>
<td valign=”top”><span class=”rc”>Continuous stimulation</span></td>
</tr>
<tr>
<td class=”lc”>Burst:</td>
<td valign=”top”><span class=”rc”>8 pulses per burst/2 bursts per second </span></td>
</tr>
<tr>
<td class=”lc”>Modulation:</td>
<td valign=”top”><span class=”rc”>Decrease/increase of set width of 50% over
a five-second period </span></td>
</tr>
<tr>
<td class=”lc”>Number of electrodes/Leadwires </td>
<td valign=”top”>4</td>
</tr>
<tr>
<td class=”lc”>Tolerances: </td>
<td valign=”top”>+/- 10%</td>
</tr>
<tr>
<td class=”lc”>Timer:</td>
<td valign=”top”>Continuous, 15, 30, 60</td>
</tr>
</table>
